Boost Efficiency with Versatile and Low-Maintenance Jib Cranes for Compact Workspaces.
A jib crane is an overhead lifting device commonly used in smaller work areas for repetitive and specialized lifting tasks. Jib cranes are highly adaptable and can be paired with overhead bridge cranes to maximize productivity. They are easy to operate and require less maintenance due to their simple structure.
- Jib Crane Capacity: Ranges from 250 kg to 10 tons.
- Swing Facility: Available in 90°, 180°, 270°, and 360°.
- Arm Length: Customizable up to 8 meters based on requirements.
Type of Jib Crane:
- Pillar Type / Free Standing Base Mount:-
- Pillar type cranes are the most versatile type. They are perfect to place underneath large bridge cranes, in open
areas where they can serve several work stations, in outdoor applications such as loading docks, or in machining and
assembly operation. - 360 degree rotation.
- independent head assembly installs separately for ease of installation
- Coverage: circular, Standard spans to 7 mtr
- Standard capacities up to 7.5 ton.
- Optional: Top and Bottom entry air swivel.
- All drive parts are easily accessible for lubrication and adjustment.
- 3 Mounting styles; base plate mounted, sleeve mounted, insert sleeve mounted.
Free-Standing Jib Crane
Versatile and robust lifting solution designed for industrial settings, offering 250 kg to 10 tons capacity. Ideal for tasks like loading/unloading, assembly, and material positioning. Key features include 360-degree rotation, sturdy construction, and customizable arm lengths up to 8 meters. Quick installation and safety features ensure reliable operation.
Wall-Mounted Jib Crane
Space-saving and efficient, this crane optimizes material handling in tight spaces. It features 180-degree rotation and is perfect for loading/unloading, assembly, and equipment handling. Built with heavy-duty materials for durability, it ensures smooth operation and easy installation with safety features like overload protection.
Column-Mounted Jib Crane
Designed for flexible and efficient lifting, this crane is suitable for manufacturing, warehousing, and construction. It provides 360-degree rotation and features a robust construction for long-term reliability. Easy to install with customizable configurations, it enhances workflow while ensuring safety with features like emergency stops.
Wall Traveling Jib Crane
This versatile lifting solution travels along walls, maximizing floor space for various applications like manufacturing, logistics, and construction. Featuring horizontal movement, it is built with heavy-duty materials for durability and smooth operation. Easy to install on existing structures, it includes safety features for secure lifting.
Floor-Mounted Jib Crane
A stable and robust lifting solution anchored to the floor, perfect for manufacturing, warehousing, and logistics. It allows for 360-degree rotation and provides customizable options for different capacities. Built with heavy-duty materials, it ensures safe operation with features like overload protection and emergency stops.
Installation:

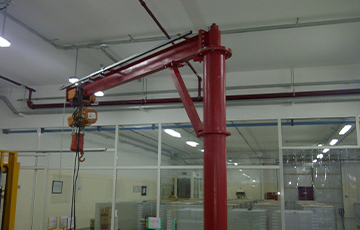

JIB CRANE 11

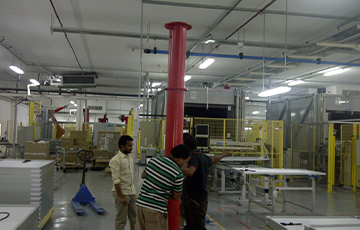

JIB CRANE 12
JIB CRANE 13
Applications:
Oil & Gas
Pharmaceutical
Logistics
Food Processing
Chemical
Cement
Packing
Mining
Frequently Asked Questions (FAQ):
A Jib Crane is a type of overhead crane that utilizes a horizontal boom (jib) to support a movable hoist mechanism. It is typically mounted on a vertical mast or pillar, allowing for rotation and lateral movement to lift and transport loads within a specific area.
- Workshops
- Warehouses
- Loading docks
- Manufacturing facilities
- Construction sites
- Assembly lines
- Mast or pillar: Vertical support structure that provides stability and houses the rotating mechanism.
- Jib or boom: Horizontal beam that extends from the mast and supports the hoist mechanism.
- Hoist: Lifting device attached to the jib for raising and lowering loads.
- Rotation mechanism: Allows the jib to rotate horizontally, providing flexibility in positioning loads.
- Foundation or mounting system: Base structure that secures the crane to the floor or a fixed surface.
- Versatility: Can lift and maneuver loads in confined spaces or areas with limited overhead clearance.
- Accessibility: Provides precise load positioning and reach, even in hard-to-reach areas.
- Efficiency: Reduces manual labor and streamlines material handling processes, increasing productivity.
- Cost-effectiveness: Offers a cost-efficient solution for lifting and transporting loads within a specific work zone.
- Wall-mounted jib cranes: Attached to a wall or vertical surface, ideal for applications with limited floor space.
- Floor-mounted jib cranes: Installed on a dedicated foundation or mounting structure on the floor, providing greater stability and lifting capacity.
- Freestanding jib cranes: Mounted on a self-supporting mast or pillar, offering flexibility in positioning and easy relocation.
- Overload protection: Prevents the crane from lifting loads beyond its rated capacity.
- Limit switches: Control the travel of the hoist and prevent over-travel of the jib.
- Emergency stop button: Allows immediate halting of crane operations in case of emergencies.
- Boom angle indicator: Helps operators maintain proper load positioning and prevent tipping.
- Safety guards and barriers: Protects personnel from moving parts and falling objects.
Jib Cranes can be powered by electricity, pneumatic systems, or manual operation, depending on the application and user requirements.
Yes, Jib Cranes can be customized with various features such as different boom lengths, hoist capacities, and rotation angles to suit specific lifting needs and spatial constraints.
